AUTO WELDING HELMET MX-500A
MULTIPRO Welding Accessories Auto Welding Helmet MX-500A

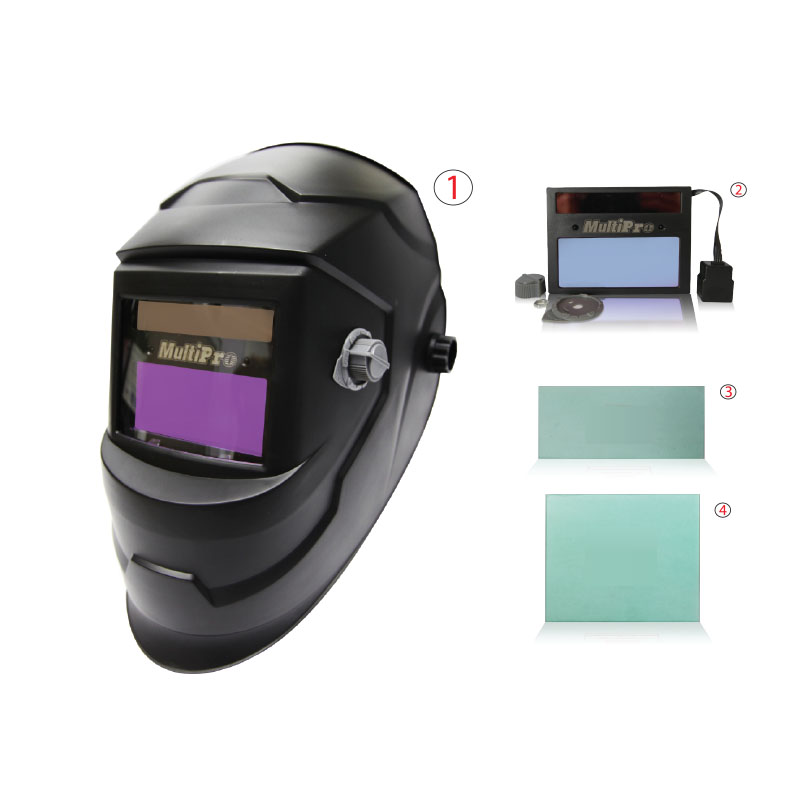

DETAIL PRODUCT
| No. | Type | Part Number | Unit |
|---|---|---|---|
| 1 | Helmet MX-500A | 5.M01.500.A01 | PCS |
| 2 | Filter Lens MX-500A | 5.M01.500.FLO | PCS |
| 3 | Lens Protection 500A Back | 5.M01.500.LPB | PCS |
| 4 | Lens Protection 500A Front | 5.M01.500.LPF | PCS |
TECHNICAL PARAMETER MX-500A
| Optical Class | 1/1/1/2 |
| Filter Size | 110 * 90 * 9 mm |
| Active Viewing Area | 92.5 mm * 42.5 mm |
| Arc Sensor | 2 |
| Light Shade | DIN 4 |
| Dark Shade | DIN 9-13 |
| Shade Control | Internal Variable |
| Switching Time | 3/10000 S |
| Sensitivity Adjustment | Step-less Control |
| Delay Time | 0.1 S – 0.8 S |
| Power Supply | Li-Battery & Solar |
| Rated Capacity of Li-Battery | 600 mAh |
| Opening Temp | -20oC ~ +65oC |
| Storing Temp | -40oC ~ +75oC |
| Low Amperage TIG Rated | >5 amp |
| Mask Material | PA/PP |
| UV/IR Protection | DIN 16 |
| Grind | YES/NO |
| Test | X |
| Low Battery | X |
| Cut | X |
