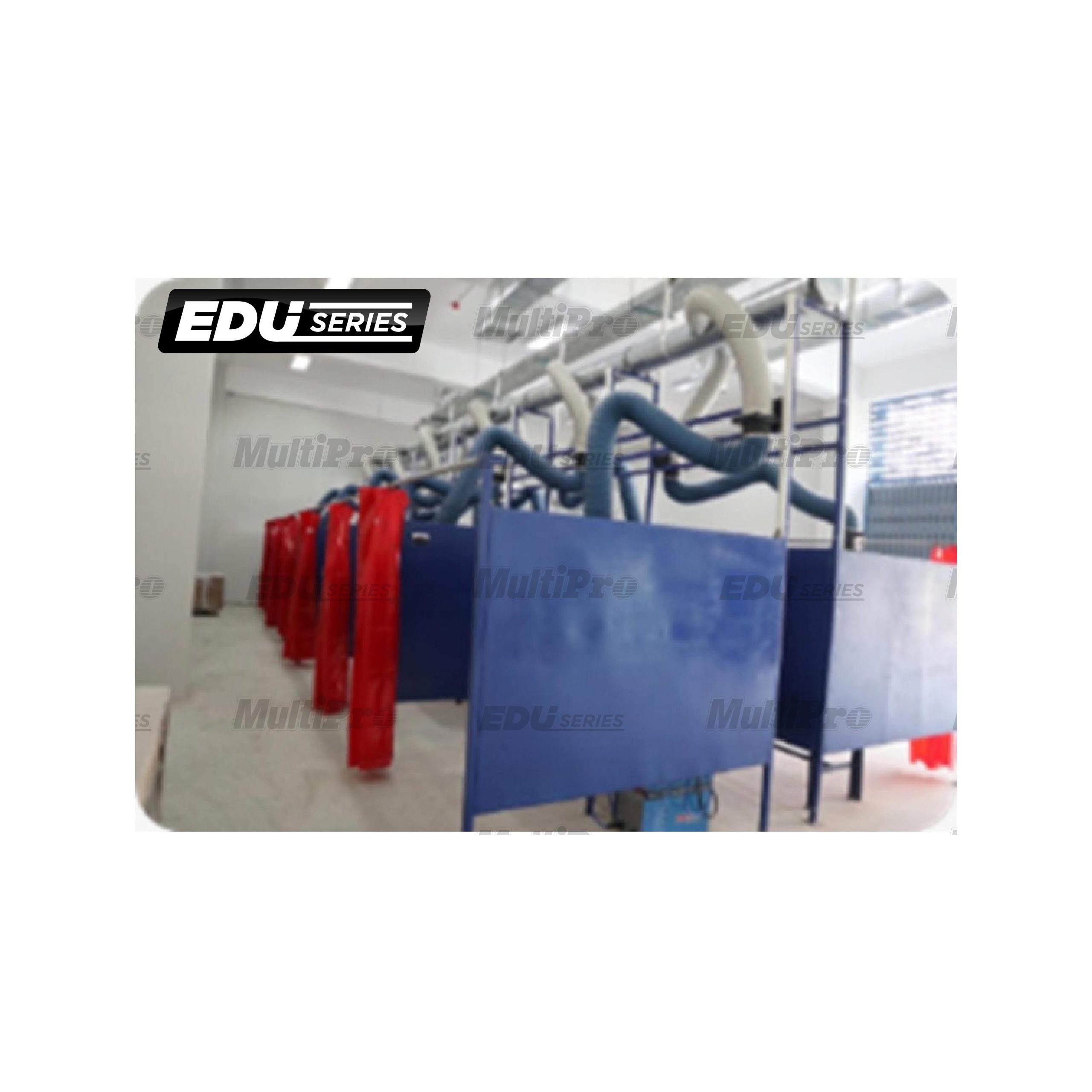

MP20-WB-TS Welding Booth
Rp 57.150.000
MULTIPRO MP20-WB-TS Welding Booth
DETAIL PRODUCT
MECHANICAL SPECIFICATION
|
| Overall Dimension (L × W × H) |
± 1.8 m × 1.8 m × 1.8 m |
| Bottom Opening from Floor |
± 0.455 m |
| Construction Material |
Mild Steel (Hollow Square Pipe) |
| Frame Size |
2 × 1 inch |
| Partition Type |
Metal Welding Partition Bays |
| Partition Coverage |
3 Sides (Front, Left & Right) |
| Application |
Training Center, Industrial & Workshop Use |
| Welding Screen Material |
Heavy Duty Welding Screen |
| Screen Dimension (L × W × H) |
± 1.74 m × 1.74 m |
| UV Protection |
Protected Arc Welding Ultraviolet |
| Certification |
EN25980 : 2015 |
| Screen Characteristics |
Moderate UV Resistance & Transparency |
| Minimum Distance from Wall |
≥ 1 Feet (Ventilation Requirement) |
| Fume Extraction Support |
Ducting Support & Horizontal Arm Mounted |

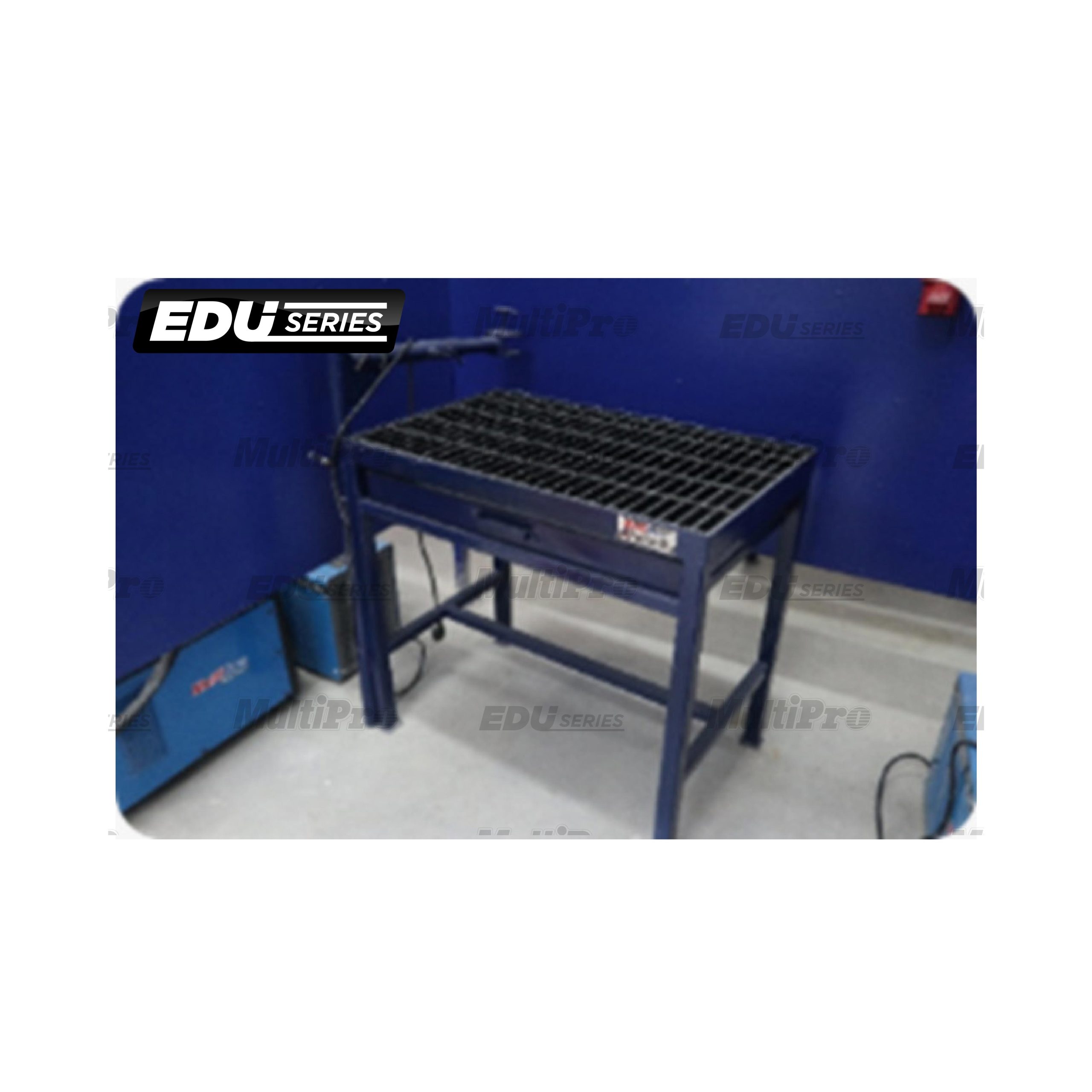

| Welding Table |
Carbon Steel Welding Table |
| Welding Position Capability |
Clamping Attachment for 1G – 6G Positions |
ELECTRICAL SPECIFICATION
|
| Power Supply (3 Phase) |
3ph 380 V / 50–60 Hz × 1 Point |
| 3 Phase Plug Capacity |
Male & Female Plug Set – Min. 32 A |
| Power Supply (1 Phase) |
1ph 220 V / 50–60 Hz × 4 Points |
| 1 Phase Socket Capacity |
Min. 10 A |
| Electrical Control Panel |
Sub MCB Box (3ph & 1ph) |
| Control System |
1 Integrated Control System per Booth |
