MULTIPRO TIG 400D G-TY
STANDARD ACCESSORIES
TIG Torch WP 18 4 m
Earth Clamp Set 3
MMA Electrode Holder Set 3m
Gas Hose 2m
Hose Clip.
OPTIONAL ACCESSORIES
Argon Gas Regulator
TIG Welding Glove
Argon Gas with Cylinder
Water Cooler System
Auto Welding Helmet

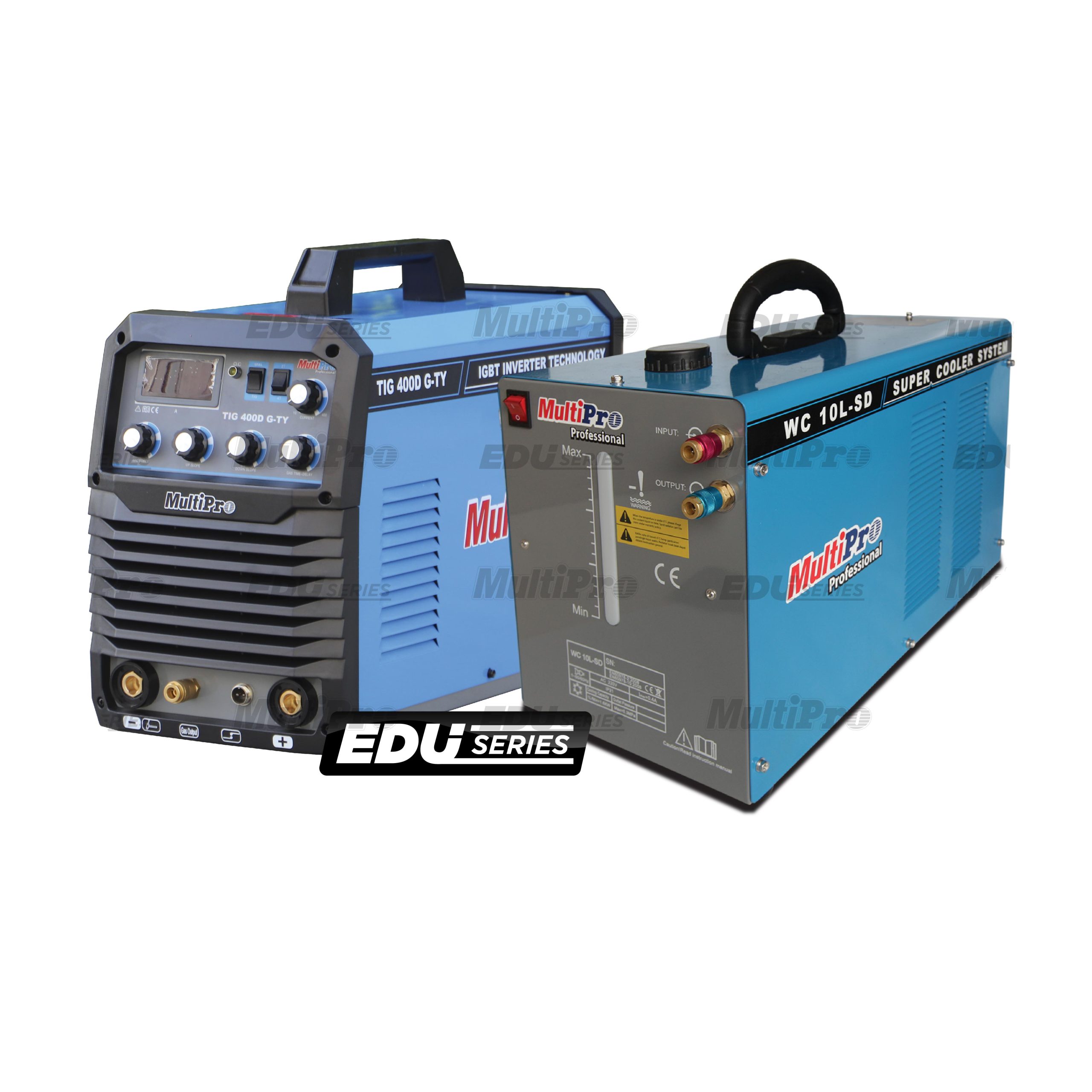

MULTIPRO TIG 400D G-TY WITH COOLER WC 10L-SD-EDU
Rp 34.860.000
MULTIPRO TIG 400D G-TY WITH COOLER WC 10L-SD-EDU
ITEMS NUMBER : 5.400.389.1310E

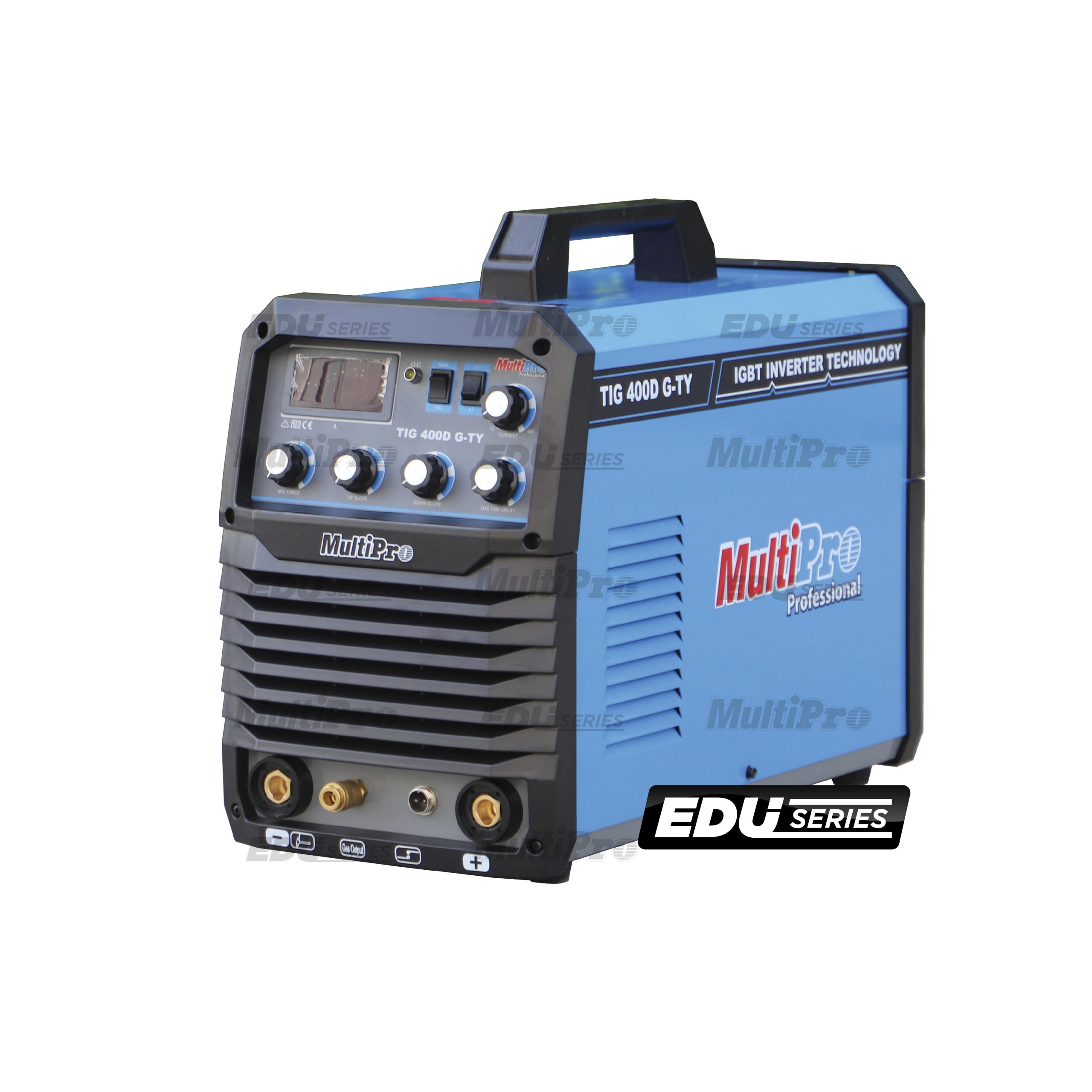

DETAIL PRODUCT – MULTIPRO TIG 400D G-TY |
|
| Input Voltage | 3 Phase 380 V ± 15% |
| Frequency | 50 / 60 Hz |
| No-Load Voltage | 60 VDC |
| Rated Input Power | TIG : 13.6 kVA MMA : 19.7 kVA |
| Rated Input Current | TIG : 20.7 A MMA : 30 A |
| Rated Working Voltage | TIG : 10.4 – 26 V MMA : 20.8 – 36 V |
| Range of Output Current | TIG : 10 – 400 A MMA : 20 – 400 A |
| Rated Duty Cycle | 60% |
| Power Factor | ≥ 0.89 |
| Efficiency | ≥ 85% |
| Insulation Class | Class F |
| Protection Class | IP21S |
| Arc Starting Method | HF (High Frequency) |
| Up Slope Time | 0 – 10 s |
| Down Slope Time | 0 – 10 s |
| Post-Flow Time | 0 – 10 s |
| Weight | 22 kg |
| Dimension (L × W × H) | 510 × 240 × 410 mm |

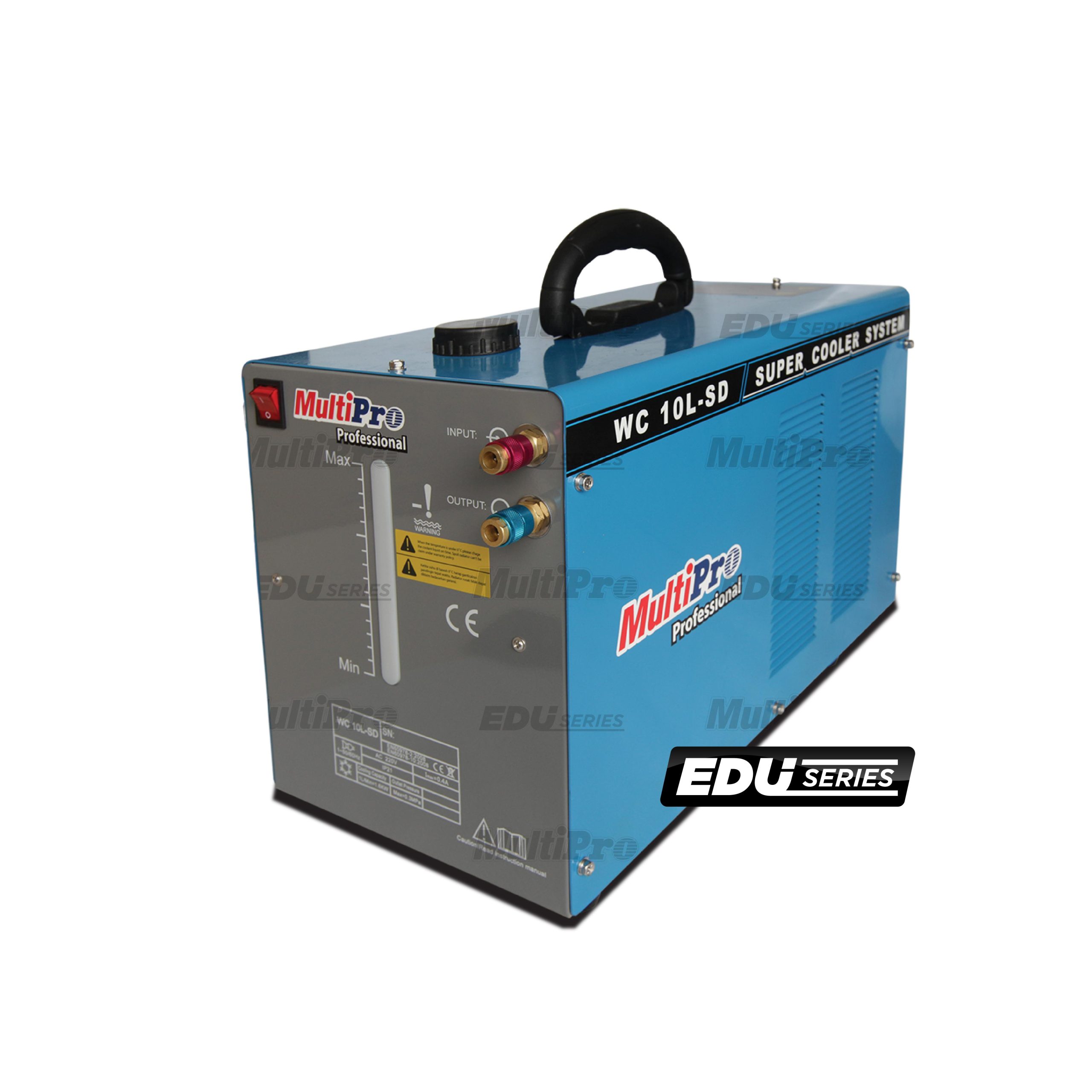

DETAIL PRODUCT – WATER COOLER 10L-SD |
|
| Input Power Voltage | 220 V |
| Input Voltage Frequency | 50 / 60 Hz |
| Cooling Power | 1.5 kW (1 L/min) |
| Pump Power | 370 W |
| Max Pressure / Head | 0.3 MPa |
| Water Capacity | 10 L |
| Operating Temperature | -20°C ~ 60°C |
| Weight | 19 Kg |
| Dimension | 470 × 260 × 380 mm |
STANDARD ACCESSORIES WATER COOLER :
Hose Clip, Water Hose.
WATER COOLER SUITABLE FOR :
TIG, MIG and Spot Welding Machine
