MULTIPRO WELDING BOOTH 2 UNIT COMPLETE SET
Rp 236.500.000
MULTIPRO WELDING BOOTH 2 UNIT COMPLETE SET
ITEM NUMBER : 5.WB2.COM.000

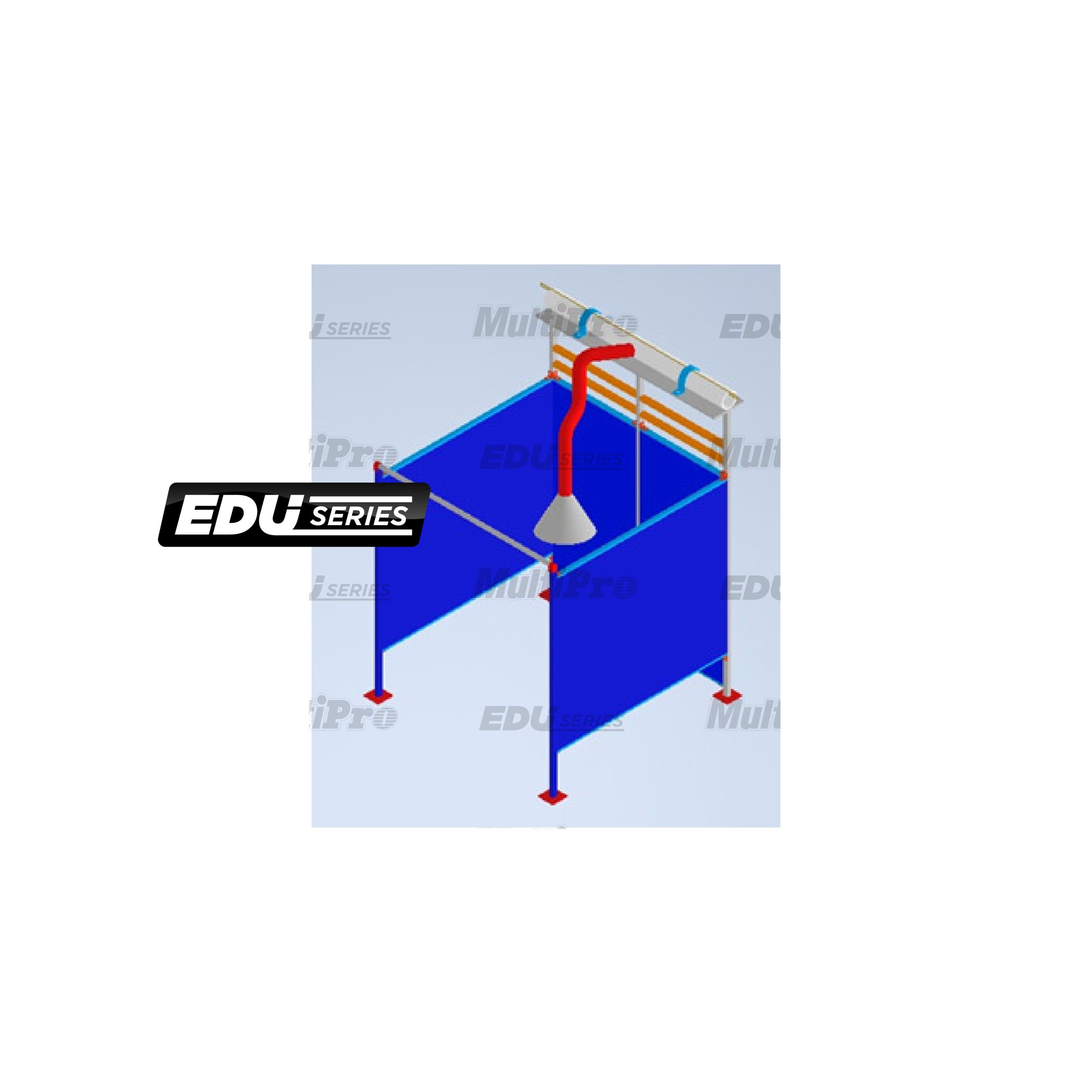

DETAIL PRODUCT – MULTIPRO WELDING BOOTH |
|

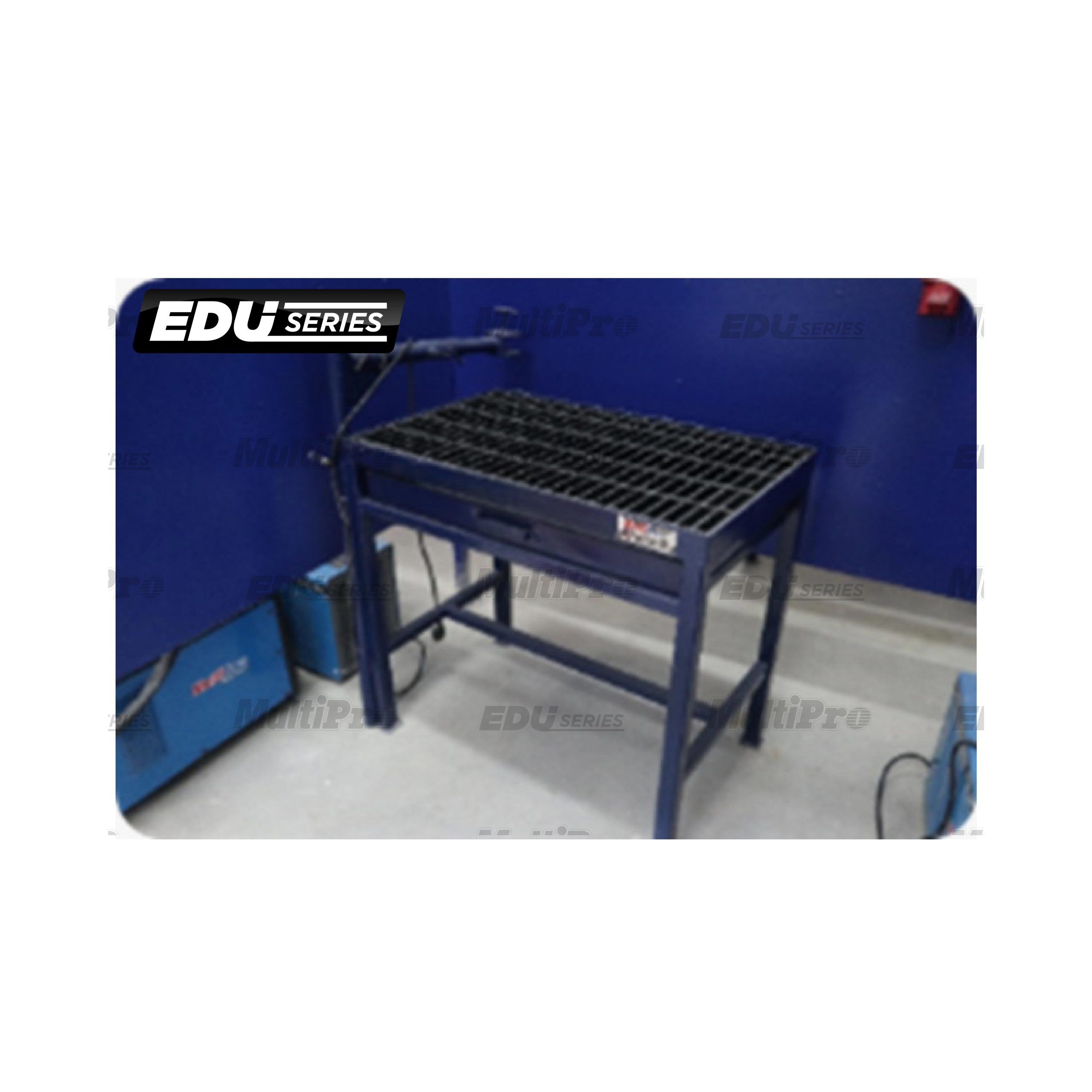

| Overall Dimension (L x W x H) | Approx. 1.8 m x 1.8 m x 1.8 m |
| Bottom Opening from Floor | 0.455 m |
| Frame Construction | Mild steel hollow square pipe, size 2″ x 1″ |
| Partition Material | Metal welding partition bays |
| Application | Training center, industrial & workshop use |
| Welding Screen | Heavy duty UV-protected welding screen Approx. size: 1.74 m x 1.74 m Certified EN25980:2015 (Moderate UV resistance & transparency) |
| Partition Coverage | Three sides: front, left, and right |
| Ventilation Clearance | Minimum 1 feet from louvered wall |
| Fume Extraction Support | Support accessories for ducting fume extractor Horizontal arm mounting system |
| Electrical Installation (3 Phase) | 3ph 380 V, 50/60 Hz x 1 point Complete with male & female plug set (min. 32 A) |
| Electrical Installation (1 Phase) | 1ph 220 V, 50/60 Hz x 4 points Minimum 10 A per point |
| Electrical Control System | Electrical switch box with sub MCB 3ph & 1ph integrated as one control system |
| Welding Table | Carbon steel welding table With clamping attachment Supports welding positions 1G – 6G |

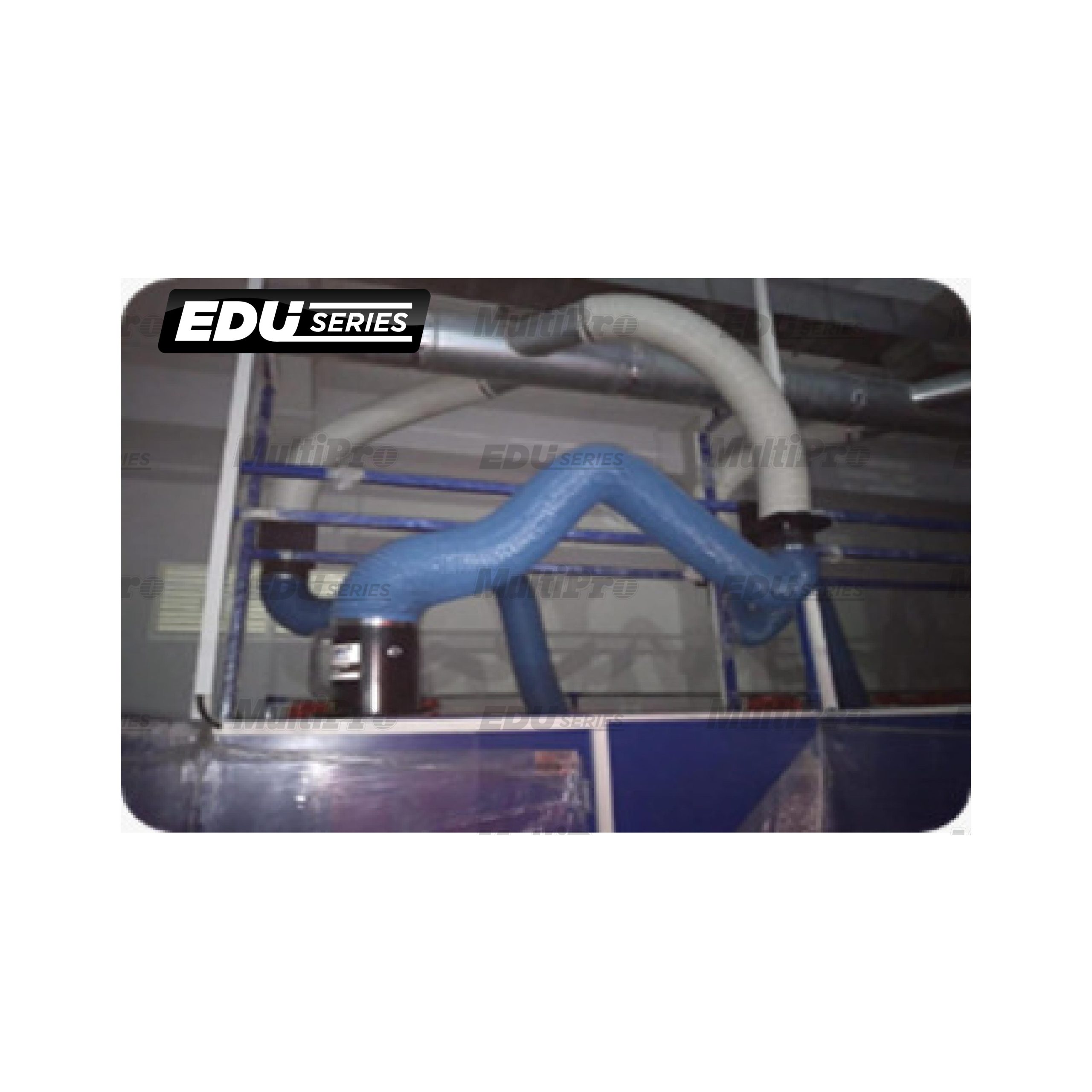

INTERNAL SUCTION ARM |
|
| System Configuration | One unit per bay, booth wall or overhead line mounted |
| Suction Hood Material | Stainless steel with safety mesh & quick-fit coupling |
| Hood Opening Diameter | Approx. 12 inch |
| Hood Movement Angle | Minimum 110° in all directions |
| Maximum Working Radius | Approx. 2 meters |
| Hose Diameter | Approx. 160 mm |
| Airflow Capacity at Hood | Approx. 800 – 1200 m³/h |
| Arm Construction | Inner & outer arm tubing with high temperature PVC Adjustable elbow joint |
| Airflow Control | Airflow throttle valve |
| Hose Joint | Flexible hose, 4″ diameter |
| Reducer Bracket | Reducer bracket 6″ to 4″ |
| Product Advantages | Lightweight and flexible rotating design All-round, multi-angle accurate positioning Free hovering during operation Easy to disassemble and clean |
CENTRIFUGAL EXTRACTION BELT MOTOR SET |
|
| System Compatibility | Attachable to centralized extraction system |
| Free Blowing Capacity | Approx. 7,500 CMH |
| Motor Power | 4 kW |
| Motor Speed | 1,500 RPM |
| Static Pressure | 950 Pascal |
| Maximum Airflow Temperature | Up to 80 °C |
| Power Supply | 380 V / 3ph / 50 Hz |

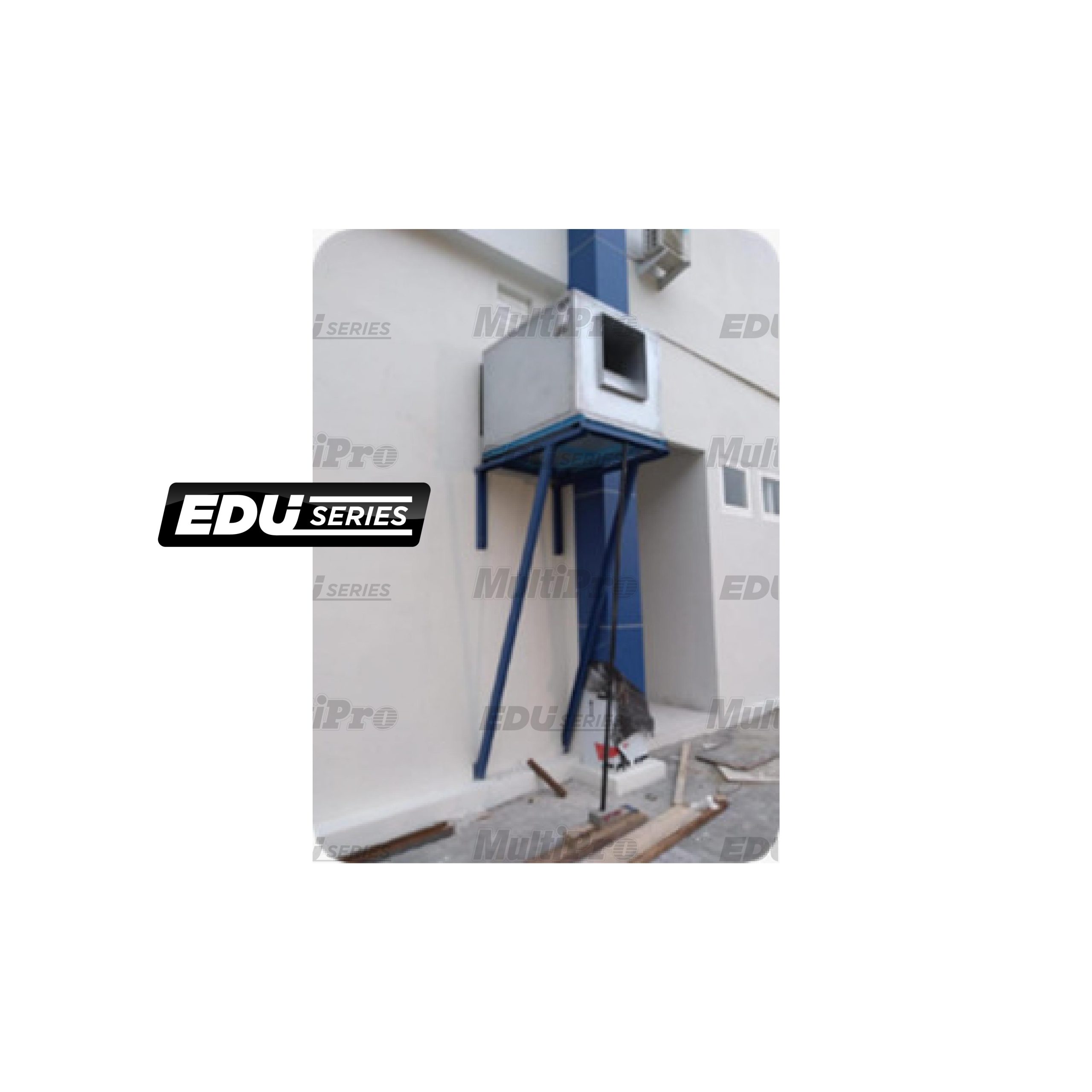

| Installation Type | Blower outlet mounted to building wall Complete with supporting stand |
| Electrical Input & Protection | Input from isolator to fan motor Power cable protection and safety system |
| Control Panel | ON/OFF control with auto protection Star-delta starting system |
| Standard Attachments (Included) | Hose joint and required standard accessories |
| Application | Heavy industrial extraction fan & motor Designed for maximum harmful smoke & gas removal Ensures optimal suction through ducting system |

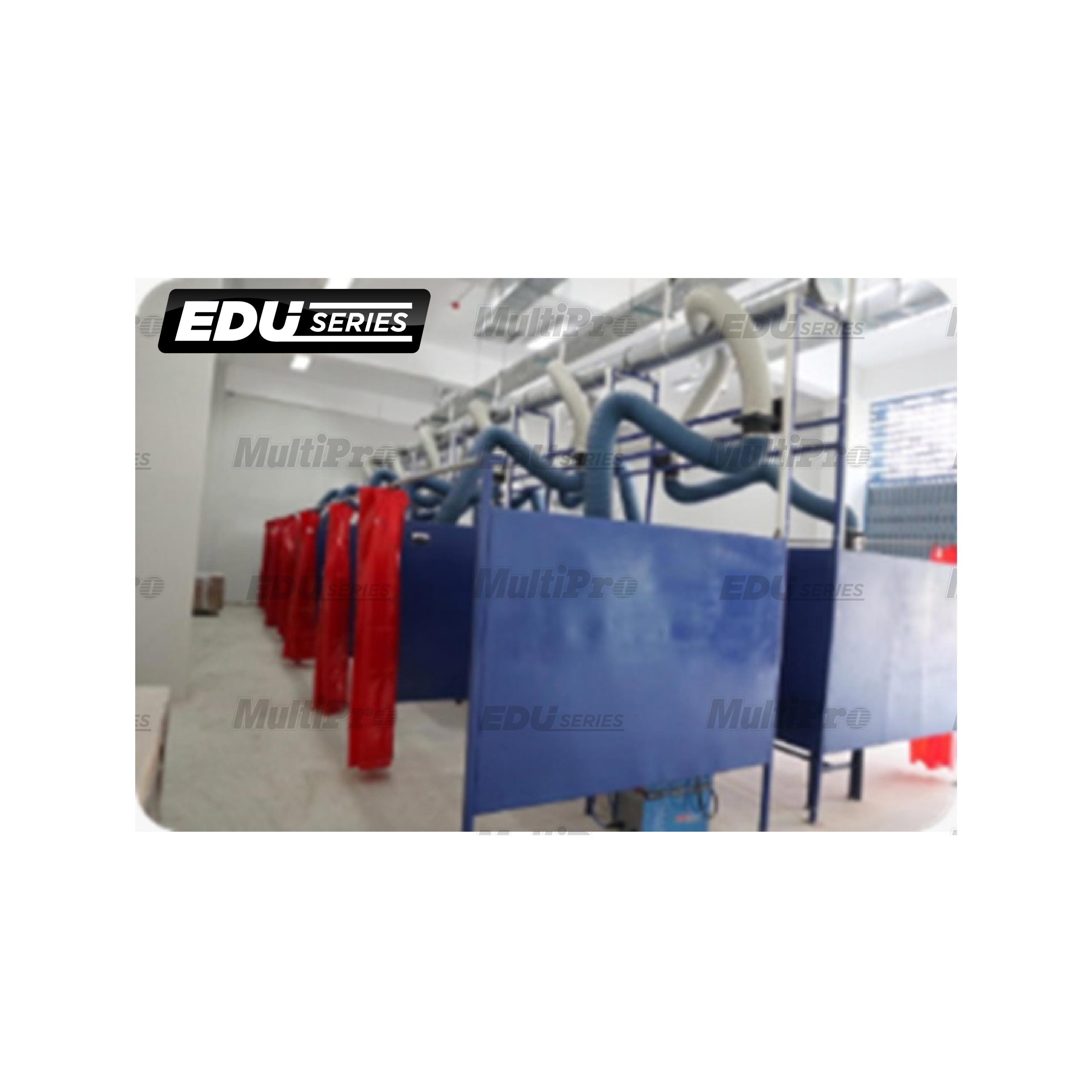

CENTRALIZED DUCTING SET (CUSTOM) |
|
| System Type | Centralized ducting extraction system (custom design) |
| Ducting Material | Galvanized spiral ducting |
| Ducting Length | Custom (as per site layout requirement) |
| Installation Position | Installed above welding booths |
| Extraction Fan Location | Mounted at the outlet end of ducting |
| System Layout | Complete ducting & fan layout plan provided |
| Chimney Type | Fabricated horizontal chimney |
| Motor Box | Outlet side motor box complete with accessories |
| Standard Attachments (Included) | Tee (TY), reducer, flexible hose Hangers, clips, brackets Other required ducting accessories |
| Delivery & Commissioning | Supplied complete to ensure full operation Ready upon delivery and commissioning |
