Informasi Tambahan
| Berat | 435 kg |
|---|
Obral!
CUT 120 G-TY
Harga aslinya adalah: Rp30,000,000.00.Rp17,292,000.00Harga saat ini adalah: Rp17,292,000.00.
5.120.500.130

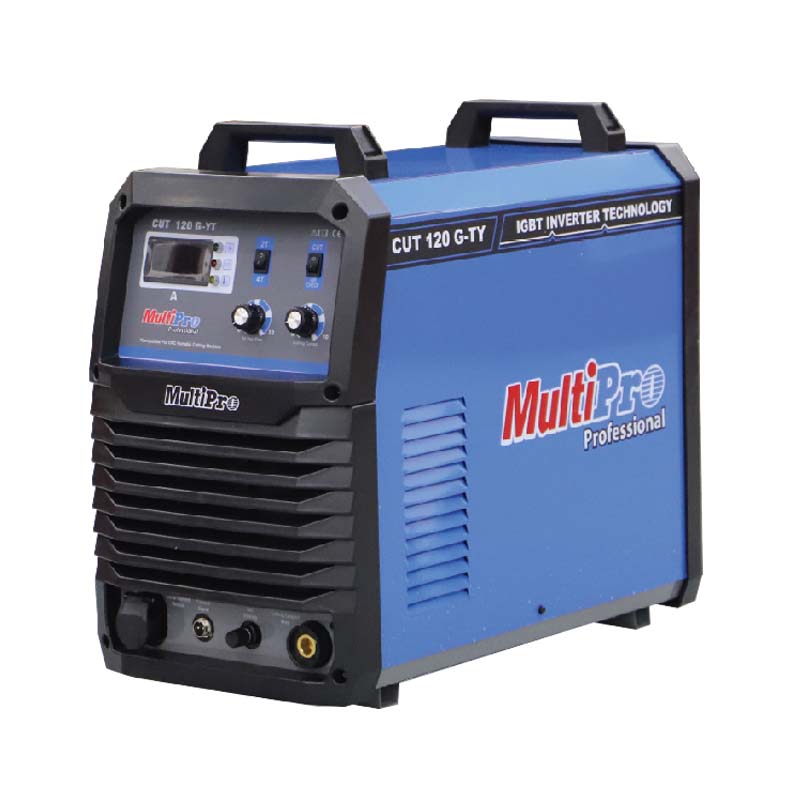

MultiPro Welding Plasma Cutting Machine CUT 120 G-TY
DETAIL PRODUCT |
|
| Input Voltage | 3ph 380 V |
| Frequency | 50 / 60 Hz |
| Rated Input Power | 25.7 KVA |
| Cutting Airflow | 250 A |
| No-load Voltage | 320 V |
| Range of Output Current | 21 – 120 A |
| Arc Striking Mode | Non-Contact |
| Rated Working Voltage | 129 V |
| Conventional Air Compressors Cutting Speed Performance | |
| Maximum Cutting Thickness | 40 mm |
| Excellent Cutting Thickness | 35 mm |
| Working Air Pressure | 0.4 – 0.55 Mpa |
| Rated Duty Cycle | 60 % |
| Power Factor | ≥ 0.95 |
| Efficiency | ≥ 85% |
| Insulation Type | H |
| Protection Type | IP21S |
| Weight | 43.5 Kg |
| Dimension | 576 x 297 x 557 mm |
STANDARD ACCESSORIES
- 6M Plasma Torch P80
- Part Kits Set Nozzle 1.3/1.5/1.7 mm
- 2 pcs Electrode & Roller Guide
- 3M Earth Clamp Set
- 6M Air Hose Set & Air Regulator
- 2 pcs Hose Clip
