TIG 315AD G-TY W/ WATER COOLER ACCESSORIES-EDU

Rp 55.781.000

MULTIPRO TIG 315AD G-TY W/ WATER COOLER ACCESSORIES-EDU

ITEM NUMBER : 5.315.399.13WACE

DETAIL PRODUCT
TIG 315AD G-TY
Input Voltage 3ph 380 V ±15%
Frequency 50 / 60 Hz
No-load Voltage 60 VDC
Rated Input Power (TIG) 9.3 KVA
Rated Input Power (MMA) 13.8 KVA
Rated Input Current (TIG) 14.1 A
Rated Input Current (MMA) 21 A
Rated Working Voltage (TIG) 10.4 – 22.6 V
Rated Working Voltage (MMA) 20.8 – 32.6 V
Range of Output Current (TIG) 10 – 315 A
Range of Output Current (MMA) 20 – 315 A
Rated Duty Cycle 60%
Power Factor ≥ 0.89
Efficiency ≥ 85%
Insulation Type F
Protection Type IP21S
Pulse Frequency 0.5 – 300 Hz
Pulse Duty 10 – 90%
Arc Leading HF Vibration
AC Frequency 60 Hz
Clean Width 20 – 80 Hz
Up Slope Time 0 – 10 s
Down Slope Time 0 – 10 s
Pre-Flow Time 2 – 10 s
Post-Flow Time 0 – 10 s
Weight 25 Kg
Dimension (L × W × H) 515 × 275 × 465 mm

TIG 315AD G-TY SUITABLE FOR
Ferrous Metal & Non Ferrous Metal (Carbon Steel, Stainless Steel, Aluminium, and etc.)
Light & Medium Industrial
Technical School

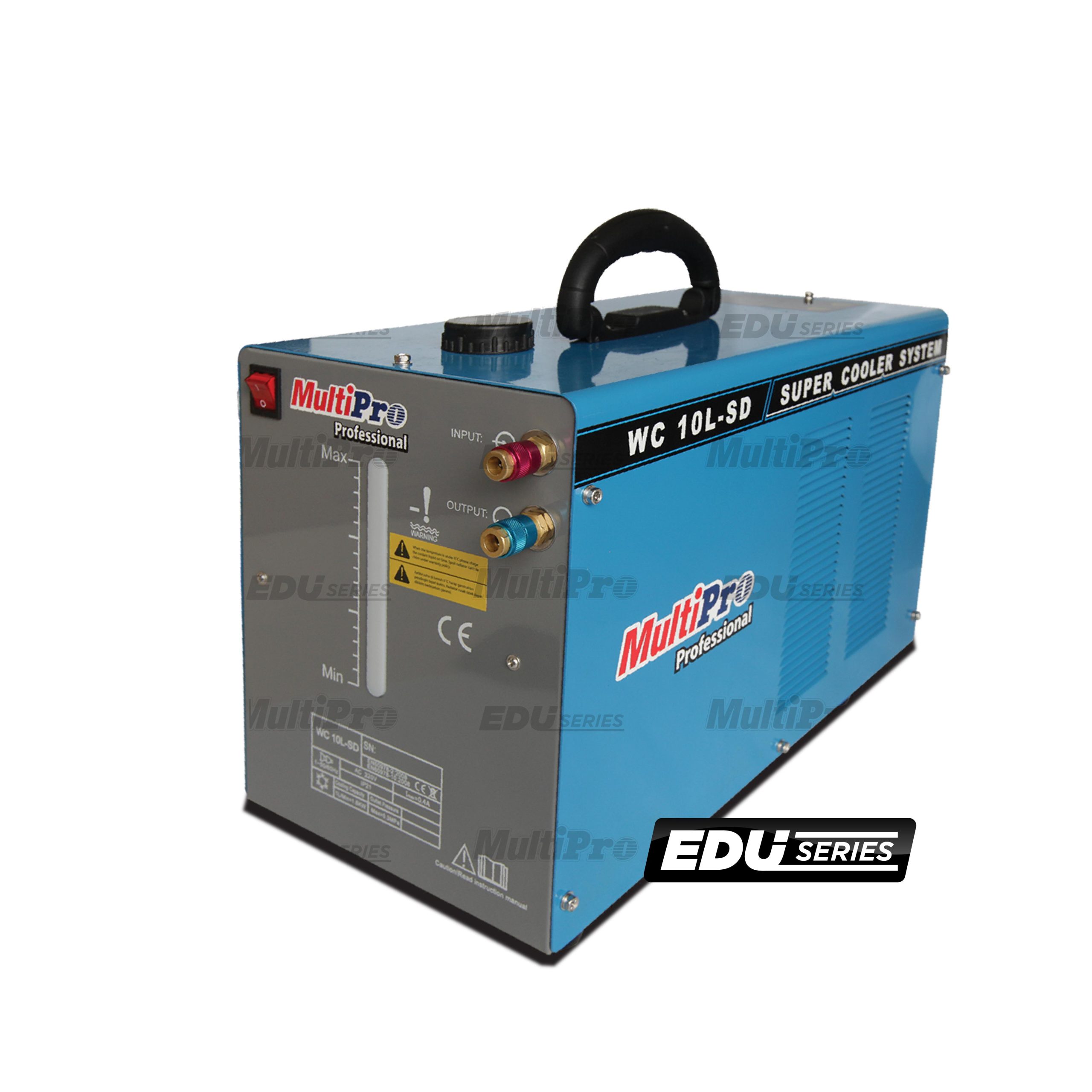

WATER COOLER 10L-SD
Input Power Voltage 220 V
Input Voltage Frequency 50 / 60 Hz
Cooling Power 1.5 kW (1 L/min)
Pump Power 370 W
Max Pressure / Head 0.3 MPa
Water Capacity 10 L
Operating Temperature -20°C ~ 60°C
Weight 19 Kg
Dimension 470 × 260 × 380 mm

WATER COOLER 10L-SD SUITABLE FOR
TIG, MIG and Spot Welding Machine.

SKU: 5.315.399.13WACE Kategori:

TIG 315AD G-TY
STANDARD ACCESSORIES
TIG Torch WP 18 4M
Earth Clamp Set 3M
MMA Electrode Holder Set 3M
Gas Hose 2M, Hose Clip

OPTIONAL ACCESSORIES
Argon Gas Regulator
TIG Welding Glove
Argon Gas with Cylinder
Water Cooler System

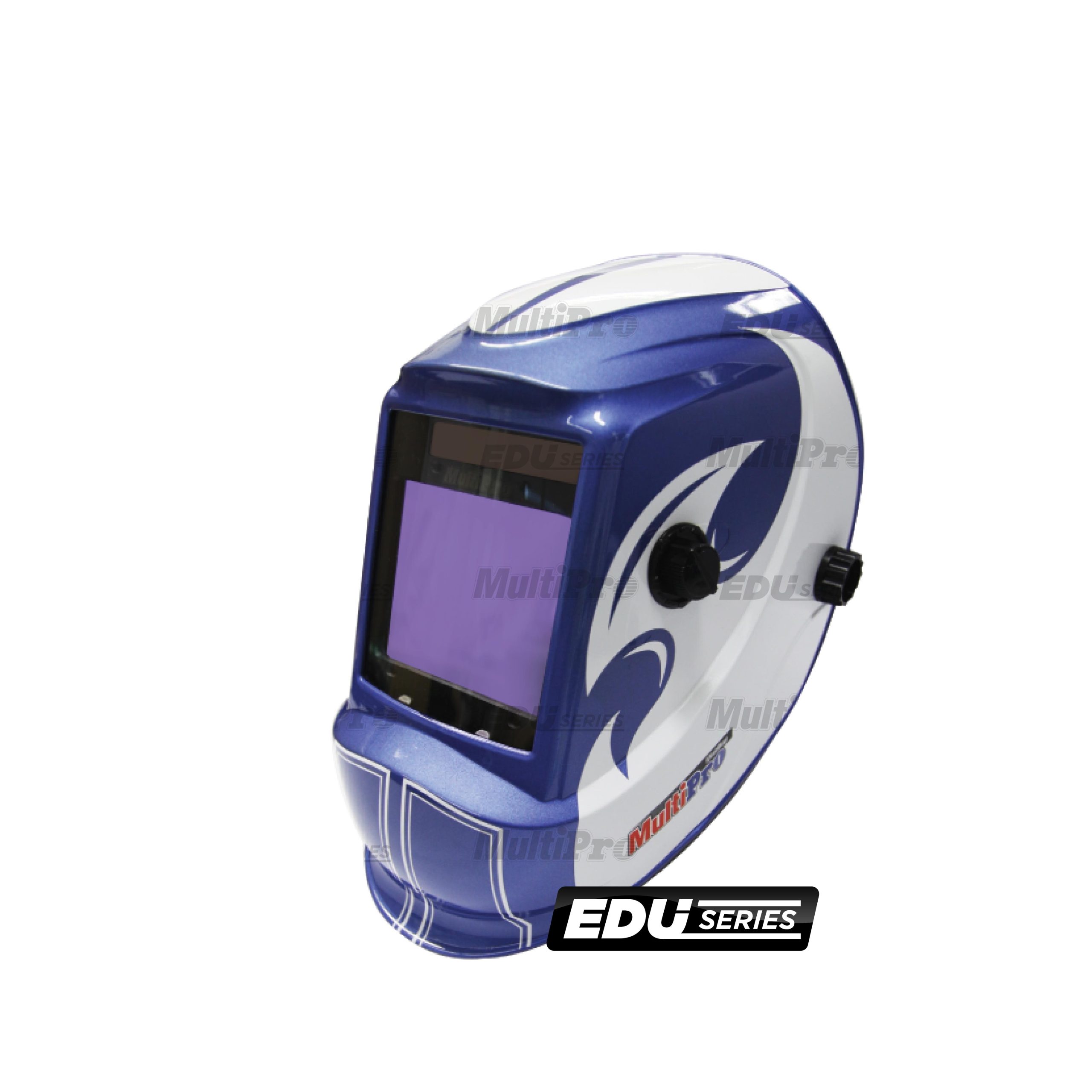

Auto Welding Helmet

WATER COOLER 10L-SD
STANDARD ACCESSORIES
Hose Clip
Water Hose

TAMBAHAN ACCESSORIES

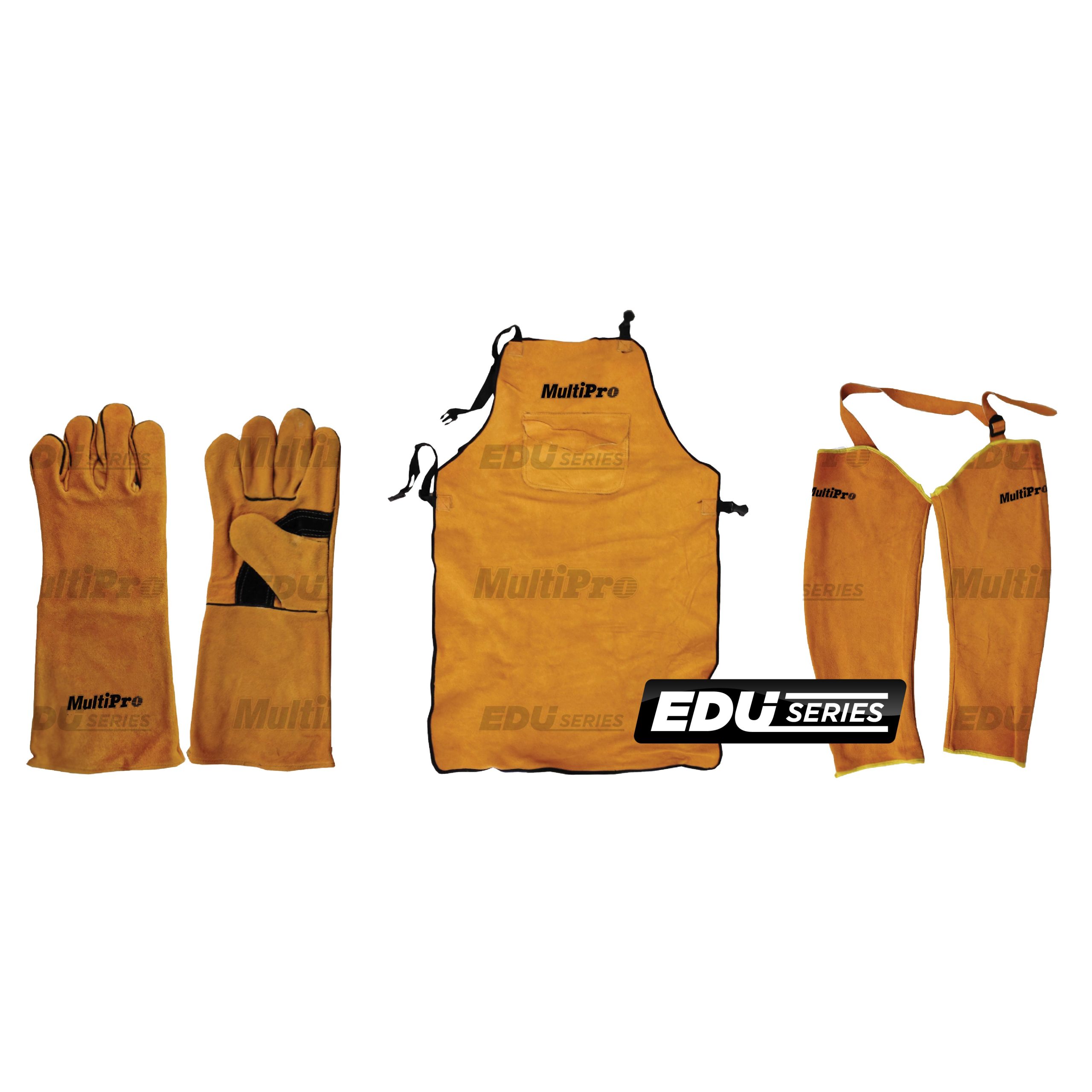

APD Premium Cow Leather Apron
Premium Cow Leather Arm Sleeve (Pair)
Premium Cow Leather Welding Glove 16″ (Pair)
CO2 GAS WITH CYLINDER 6M2
Auto Welding Helmet
