Informasi Tambahan
| Berat | 12 kg |
|---|
Obral!
SMART SERIES CUT 45C G-SB
Harga aslinya adalah: Rp24,860,000.00.Rp15,888,000.00Harga saat ini adalah: Rp15,888,000.00.
5.S45.500.130

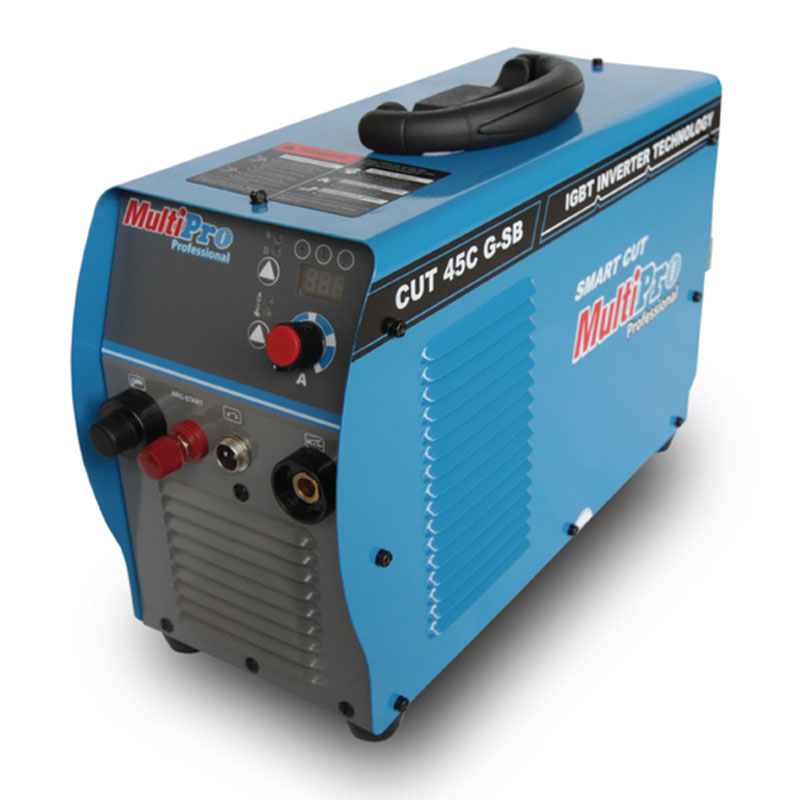

MULTIPRO WELDING SMART SERIES CUT 45C G-SB
DETAIL PRODUCT |
|
| Input Power Voltage | 1ph 220 V ± 15% |
| Input Voltage Frequency | 50 / 60 Hz |
| Rated Input Power | 4.7 KVA |
| Rated Input Current | 32 A |
| No-load Voltage | 265 V |
| Range of Output Current | 20-35 / 20-45 A |
| Arc Striking Mode | Non-Contact |
| Range Working Voltage | 88-96 V |
| Built-in Compressors Performance | |
| Maximum Cutting Thickness | 20 mm |
| Excellent Cutting Thickness | 10 mm |
| Conventional Air Compressors Cutting Performance | |
| Maximum Cutting Thickness | 25 mm |
| Excellent Cutting Thickness | 12 mm |
| Working Air Pressure | 0.4 – 0.45 Mpa |
| Rated Duty Cycle | 100 % |
| Power Factor | ≥ 0.7 |
| Efficiency | ≥ 85% |
| Insulation Type | F |
| Protection Type | IP21S |
| Weight | 12 Kg |
| Dimension | 407 x 160 x 280 mm |
STANDARD ACCESSORIES
- 6M Plasma Torch S45
- Part Kits Set Nozzle
- 0.6/0.8/0.9 mm
- 2 pcs Electrode
- Distance Spring
- Earth Clamp Set & Air Regulator
